Product description

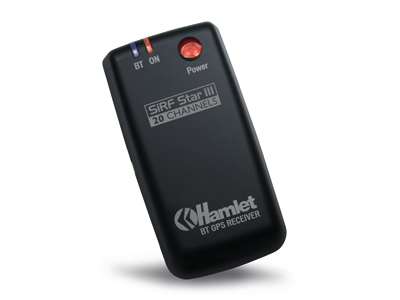

Wireless GPS receiver is compatible with all navigation software. Works with cellular phone, computer and PDA wireless Bluetooth enabled.

Features

• Cellular phone, Smart phone and PDA compatible
• Based on SiRF Star III architecture
• Compatible with all navigation software
• Li-Ion rechargeable battery
• 12V charger included

Specifications

• Protocol: NMEA 0183 (Default: GGA,GSA,GSV,RMC,VTG)
• Baud Rate: 4800/9600/38400/57600/115200bps (Default: 9600)
• Datum: WGS84
• Channel: 20 channel all-in-view tracking
• Frequency: L1, 1575.42MHz
• Hot Start: 1 sec. Average
• Warm Start: 37 sec. Average
• Cold Start: 41 sec. Average
• Reacquisition Time: 0.1 sec (Typical)
• Position Accuracy: 10 meters, 2D RMS, 7 meters 2D RMS, WAAS corrected
• Sensitivity: Tracking:-159 dBm
• Power Supply: DC 5V
• Power Consumption: 75mA (avg.)
• Battery Life: 12HRs with Li-Ion Battery
• Antenna Type: Built in low noise patch antenna
• External Antenna Interface: MMCX
• Bluetooth: Class 2, distance up to 10mt
• Dimension: 45(W)x86(L)x23(H) mm
• LED Indicator:
  Red LED:GPS is fixed or not fixed/Power On
  Blue LED:BT is connected or not connected
• Operating Temperature: -10°C to + 70°C
• Storage Temperature: -40°C to + 85°C
• Operation Humidity: 5%~95%, Non-Condensing

Package content

• BT GPS receiver
• Li-Ion battery
• 12V DC car charger
• Manual CD
