www.hamletcom.com

Product description

Discontinued product

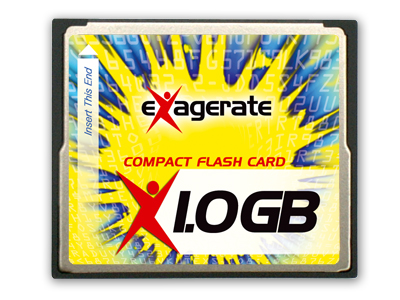

CompactFlash is an ultra-small,matchbox-size, removable data storage system. Introduced in October, 1994, CF provides complete PCMCIA-ATA
functionality and compatibility. CF has built-in, industry-standard compatibility because the 50-pin CF card can be easily slipped into a passive 68 pin Type II adapter card that fully meets PCMCIA electrical and mechanical interface specifications. CompactFlash has been designed into more than 200 new mobile products including digital cameras, HPCs and audio recorders. CompactFlash is widely used in digital cameras, PDAs, HPCs, personal communicators, medical monitors and audio recorders because it expands the functionality of those products and enables them to be smaller and lighter.

Features

• Comforms to Compact Flash Card specification standard
• Fully compatible with PC Card ATA specifications
• Support for 8-bit or 16-bit host data transfers
• Support PIO mode 4
• Support Error Correcting Code (ECC) function to detect and correct errors
• Support power down commands and sleep mode
• Support Wear Leverage function to maximize data endurance
• Non-volatile storage (no battery required)
• +5 Volts or 3,3 Volts operation
• Size: 42.8 x 36.4 x 3.3 mm
• MTBF > 1.000.000 hours
• Durability: Minimum 10.000 insertion/removal cycles
• Low weight
• Noiseless
• Low profile
• Temperature Operation: 0° - 70°C
• Temperature Non-operation: -25° - 85°C
• Moisture Operation/Non-operation: 8% to 95% non-condensing
• Acoustic Noise: 0dB
• Vibration Operation/Non-operation: 15 G peak to peak max
• Shock Operation/Non-operation: 2.000 G max
