Product details

product data sheet
HN360TX
Discontinued Product
CODE: HN360TX
EAN: 
supports compatible with Windows XPcompatible with Windows Vistacompatible with Windows 8compatible with MacOScompatible with Linux

Product menu

Product description

Discontinued product

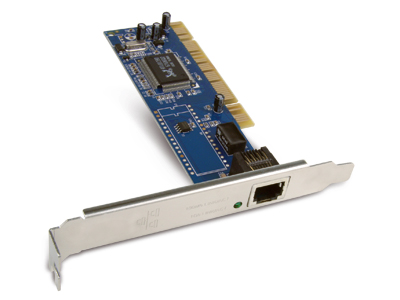

Hamlet 10/100Mbps Ethernet Network Adapter is a high-speed PCI adapter with a single auto-negotiation 10/100 RJ-45
connector which supports Full-duplex. On Full-duplex mode, the speed can be boosted to 20/200Mbps.

Product Feature

  • Complies with PCI local bus specification Rev. 2.1 & 2.2
  • Single-chip Fast Ethernet controller provides 32-bit PCI bus master operation
  • Supports PCI target fast back-to-back transaction
  • Supports PCI clock from 16.75MHz to 40MHz
  • Supports ACPI, PCI power management
  • Fully auto-negotiates between 100Mbps and 10Mbps full duplex and half duplex devices
  • Contains two large (2Kbyte) independent receive and transmit FIFO's
  • Plug and Play compatible
  • Programmable auto-negotiates between 100Mbps, 10Mbps full duplex and half duplex
  • Diagnostic Link /Activity, Full Duplex LEDs for quick troubleshooting
  • Plug-and-Play for Windows 95, 98, NT, 2000
  • Support 802.1p/q tagging for Windows 2000, Me, 98

Technical Specification

  • Standards Compliance: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
  • Bus Type: PCI 2.1 & 2.2
  • Interrupt Level: Interrupt line INTA, which conforms with the PCI specification
  • Host Data Bus Architecture: 32-bit Bus Mastering
  • Access Method: CSMA/CD
  • Topology: Star
  • Transmit/Receive Buffer: 4KB (2KB Transmit, 2KB Receive)
  • Transmission Media: 10BASE-T Cat. 3,4,5 UTP/STP Cable, 100BASE-TX Cat. 5 UTP/STP Cable
  • Safety Certificates: CE & FCC-A
  • LED Status: Link /Activity, Full Duplex
  • Humidity: 10% ~90% RH (Non-condensing)
  • Temperature: 10°C~ 70°C(Store)  0°C~55C (Operation)
  • Dimension: 440mm x 220mm x 44mm (L × W × H)
  • Weight: Unpacked: 0.058kg, Packed: 0.28kg.
  • Power Consumption: +5V +/- 5% at 300 mA (1.5 Watts)

Package Contents

  • 10/100Mbps Fast Ethernet Card
  • Quick Start Guide (English and Italian)
  • Floppy Disk Drivers
Specifications and appearance are subject to change without prior notice.
