Product description

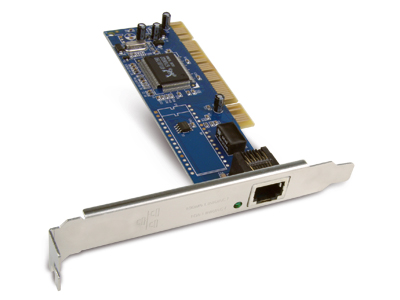

Hamlet 10/100Mbps Ethernet Network Adapter is a high-speed PCI adapter with a single auto-negotiation 10/100 RJ-45 connector which supports Full-duplex and Wake on Lan. On Full-duplex mode, the speed can be boosted to 20/200Mbps.

Product Feature

• Complies with PCI local bus specification Rev. 2.1 & 2.2
• Single-chip Fast Ethernet controller provides 32-bit PCI bus master operation
• Supports PCI target fast back-to-back transaction
• Supports PCI clock from 16.75MHz to 40MHz
• Supports ACPI, PCI power management
• Fully auto-negotiates between 100Mbps and 10Mbps full duplex and half duplex devices
• Contains two large (2Kbyte) independent receive and transmit FIFO's
• Plug and Play compatible
• Programmable auto-negotiates between 100Mbps, 10Mbps full duplex and half duplex
• Diagnostic Link /Activity, Full Duplex LEDs for quick troubleshooting
• Plug-and-Play for Windows 95, 98, NT, 2000
• Support 802.1p/q tagging for Windows 2000, Me, 98
• Support Wake on LAN (WOL) support compliant with PC98, PC99 and OnNow
• Supports Wake-On-LAN function and remote wake-up (Magic Packet, LinkChg and MicrosoftR wake-up frame)
• Advanced power saving mode when LAN function or wakeup function is not used

Technical Specification

• Standards Compliance: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
• Bus Type: PCI 2.1 & 2.2
• Interrupt Level: Interrupt line INTA, which conforms with the PCI specification
• Host Data Bus Architecture: 32-bit Bus Mastering
• Access Method: CSMA/CD
• Topology: Star
• Transmit/Receive Buffer: 4KB (2KB Transmit, 2KB Receive)
• Transmission Media: 10BASE-T Cat. 3,4,5 UTP/STP Cable, 100BASE-TX Cat. 5 UTP/STP Cable
• Safety Certificates: CE & FCC-A
• LED Status: Link /Activity, Full Duplex
• Humidity: 10% ~90% RH (Non-condensing)
• Temperature: 10°C~ 70°C(Store)  0°C~55C (Operation)
• Dimension: 440mm x 220mm x 44mm (L × W × H)
• Weight: Unpacked: 0.058kg, Packed: 0.28kg.
• Power Consumption: +5V +/- 5% at 300 mA (1.5 Watts)

Package Contents

• 10/100Mbps Pci LAn Card
• Quick Start Guide
• Floppy Disk Drivers
• Wake-on-Lan cable
