Product details

product data sheet
HNNG32TX

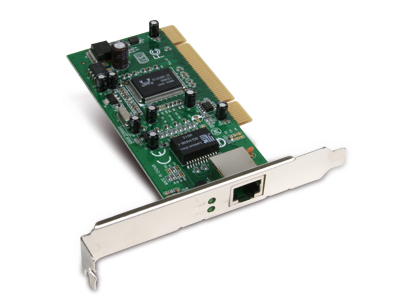

Gigabit Networking Card 10/100/1000 32Bit PCI Lan card
CODE: HNNG32TX
EAN: 
supports compatible with Windows XPcompatible with Windows 8compatible with Linux

Product menu

Product description

Hamlet 32Bit PCI Lan card is totally Plug & Play, simply insert the card into a PC and it will automatically be configured by the PC Bios.
It can connect computers at 10/100/Gigabit per second in the local area network. It is Full-duplex, capable of doubling the speed up to 2 Gigabit per second. The Gigabit connection can be realized using UTP Category 5 cable with RJ45 connector (cat. 5E cable is recommended)

Features

  • 10/100/1000 Mbps speed witch auto-detection
  • Full-duplex mode doubles network data rate to 20/200/2000Mbps
  • Plug & Play with PC Bios Auto-configuration
  • Wake-on-Lan function for remote PC wake up
  • R45 Lan connector
  • Monitoring led for all function

Specifications

  • Support 32-bit PCI Local Bus Master high-speed operation of Rev.2.2 specification
  • Plug-and-Play installation -- simply insert the card into a PC and it will automatically be configured by the PC BIOS
  • One RJ-45 connector: Auto detection of 10 / 100  and 1000Mbps Gigabit Ethernet & Auto MDI-X
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • ANSI/IEEE 802.3 Auto-negotiation
  • Protocol CSMA/CD
  • Supports Full-duplex mode doubles network data rate to 20/200/2000Mbps
  • Supports Wake-on-LAN for remote wake up
  • Supports IEEE802.1Q VLAN tagging
  • Built -in FIFO(8K/64K) buffers reduces overhead of memory transfers
  • Diagnostic LEDs: Link, Activity and  3x speed recognition ( 10/100/1000)
  • Temperature: Operating: 0 ~ 40oC; Storage: -10 ~ 70 oC
  • Humidity: Operating: 10% ~ 90% RH; Storage: 5% ~ 90% RG
  • Emission: FCC Class B; CE mark Class B; VCCI-B
  • Supported Drivers: Windows 98/Me/2000/NT4.0/XP/W64Bit, Novell Netware Server 6.x, Linux  2.2.x and 2.4.x

Package contents

  • 32 Bit PCI Gigabit ethernet adapter
  • Quick Start Guide (English and Italian)
  • Cd-rom with drivers and manual
Specifications and appearance are subject to change without prior notice.
