Product details

product data sheet
HNW300AP
Discontinued Product
CODE: HNW300AP
EAN: 
supports compatible with Windows XPcompatible with Windows Vistacompatible with Windows 7compatible with Windows 8

Product menu

Product description

Discontinued product

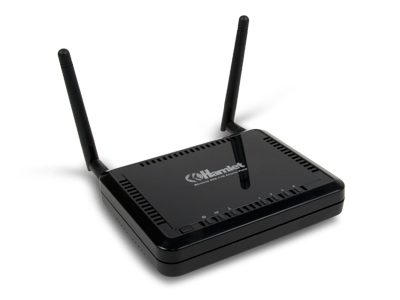

The Hamlet Wireless Access Point is also an IEEE 802.11n compliant Router with a built in 4-port fast Ethernet Switch. It offers the easiest way to share and extend your high-speed DSL/Cable Modem Internet connection, either with or without wires. Network Address Translation (NAT) and VPN pass-through provide your network protection from hackers, while WEP and WPA encryption guard your wireless network for maximum privacy.

Features

  • Wireless Data Rate up to 300Mbps
  • WAN port for optional ADSL Modem
  • IEEE 802.11n compliant and backward compatible with 802.11b/g
  • Four 10/100Mbps Fast Switch Ports (Auto-Crossover)
  • Supports TCP/IP, PPPoE, DHCP, ICMP, NAT
  • Supports UPnP, Dynamic DNS, Static Routing, VPN pass-through
  • Firewall supports Virtual Server Mapping, DMZ, IP Filter, ICMP Blocking, SPI;
  • Built-in NAT and DHCP server supporting static IP address distributing
  • Supports Virtual Server, Special Application and DMZ host
  • Built-in Firewall supporting IP address, Domain Name and MAC address filtering
  • Provides 64/128 bit WEP encryption, WPA and WPA-PSK authentication using TKIP/AES encryption security
  • Provides 802.1x authentication for WAN port
  • Provides Wireless LAN ACL (Access Control List) filtering
  • Supports WDS (Wireless Distribution System) and QoS
  • Web based management and firmware upgrade

Specifications

  • 4 LAN 10/100M Auto MDI/MDIX RJ45 ports
  • 1 WAN 10/100M Auto MDI/MDIX RJ45 port
  • 2x 2dBi 2.4GHz detachable antennas
  • Frequency range: 2.4~2.484 GHz
  • Operation Mode: AP/Repeater/WDS
  • Wireless Mode: 11b/11g/11n
  • Modulation: OFDM (BPSK, QPSK, 16-QAM, 64-QAM), DBPSK, DQPSK, CCK
  • Channels: 1~11 (US, Canada), 1~13 (Europe), 1~14 (Japan)
  • Channel Bandwidth: Auto, 20 MHz, 40 MHz
  • Radio Data Rate: 11g: 54/48/36/24/12/9/6 Mbps (Auto-Sense); 11b: 11/5.5/3/2/1 Mbps (Auto-Sense)
  • Data Security: WPA (TKIP/AES), 64/128 bit WEP, ACL
  • WPS push button (Wireless Protected Setup)
  • Status LEDs: Power/Status, WAN, LAN1~LAN4, WLAN
  • Power: 12V/1A DC power adapter
Specifications and appearance are subject to change without prior notice.
