Product description

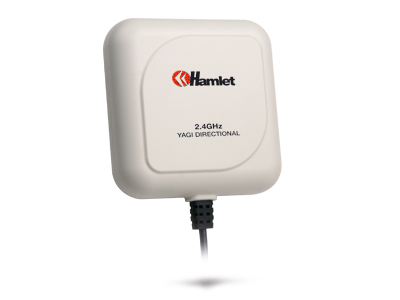

Hamlet Directional Antenna improves the 2,4-2,5GHz Wi-Fi Wireless Lan connections under IEEE 802.11b/g/n standards. Thanks to the big gain of 9dBi and the Yagi directional feature, the wireless device or Router on which this antenna is applied can increase the action range. The connector used is RP-SMA standard: very popular for wireless devices in the office. You only have to substitute the original antenna with Hamlet Directional Antenna to get immediately extra functions and power from your Lan.

Specifications

• Compliant with IEEE 802.11b/g/n
• 1Mt cable lenght
• SMA connector straight Plug/Reverse
• No external power needed

Features

• Frequency range: 2.4GHz - 2.5GHz
• Impedance: 50Ohms Nominal
• VSWR: 1.92 Max
• Return Loss: -10dB Maximum
• Radiation Pattern: Yagi-directional
• Gain (Exclude cable loss): 9dBi
• Admitted power: 1W
• Operating Temp: -20°C ~ +65°C
• Storage Temp: -30°C ~ +75°C
• Cable length: 1Mt
• Connector: SMA Straight Plug/Reverse

Package content

• Directional Antenna
• Wall Mounting Kit
• User guide
