Product description

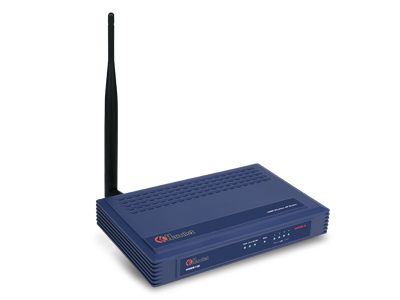

The Hamlet Wireless Access Point is also a broadband IEEE 802.11g compliant Wireless Router with a built in 4-port fast Ethernet Switch. It offers the easiest way to share and extend your high-speed DSL/Cable Modem Internet connection, either with or without wires. Network Address Translation (NAT) and VPN pass-through provide your network protection from hackers, while 152bit WEP encryption guard your wireless network for maximum privacy. All incoming data packets are monitored and filtered. It can also be configured to block internal users from accessing to the Internet. Web managed.

Features

• Complies with IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u standards
• 4 10/100M Auto-Negotiation RJ45 LAN ports
• 1 10/100M Auto-Negotiation RJ45 WAN port
• Supports Auto MDI/MDIX
• Shares data and Internet access for users, supporting PPPoE, Dynamic IP, Static IP, L2TP, BigPond Cable Internet access
• Supports up to 108Mbps wireless LAN data transfer rates
• Provides 64/128/152-bit WEP encryption security
• Provides WPA and WPA-PSK authentication and TKIP/AES encryption security
• Provides wireless LAN ACL (Access Control List) filtering
• Provides 802.1x authentication for WAN port
• Built-in NAT and DHCP server supporting static IP address distributing
• Supports Virtual Server, Special Application, and DMZ host
• Built-in Firewall supporting IP address, Domain Name and MAC address filtering
• Supports access control
• Supports TCP/IP, PPPoE, DHCP, ICMP, NAT
• Supports UPnP, Dynamic DNS, Static Routing, VPN pass-through
• Supports Flow Statistics
• Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter
• Ignores Ping packets from WAN or LAN ports
• Supports firmware upgrade
• Supports Remote and Web management

Specifications

• Standards and Protocols: IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1x, CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE
• 4 LAN 10/100M Auto MDI/MDIX RJ45 ports
• 1 WAN 10/100M Auto MDI/MDIX RJ45 port
• Frequency range: 2.4~2.4835 GHz
• Radio Data Rate:    11g: 108/54/48/36/24/12/9/6 Mbps (Auto-Sense); 11b: 11/5.5/3/2/1 Mbps (Auto-Sense)
• Channel: 1~11 (US, Canada), 1~13 (Europe), 1~14 (Japan)
• Extend Frequency DSSS
• Modulation: BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/64-QAM)
• Transmission Distance: Indoor up to 100m, outdoor up to 300m (Standard transmission distance, it is limited in an environment).
• Transmit Power: 17dBm (Typical)
• Antenna    5dBi
• Data Security: WPA; 64/128/152-bit WEP; TKIP/AES
• LED Indicators: Power, System, WLAN, WAN, LAN (1, 2, 3, 4)
• Dimensions: 174 × 110 × 28.5 mm
• Operating Temperature: 0 °C ~ 40 °C, Storage Temperature: -40 ~ 70 °C
• Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~95% non-condensing
• Power: 9V AC power adapter; Consumption: 7W (Max)
• Safety & Emission: FCC, CE

Package Content

• Access Point
• Power adapter 9V AC 800mA 7.2VA
• Resource CD
• User's manual
