Product description

Discontinued product

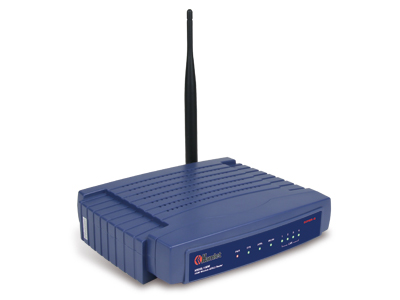

Hamlet 108W Wireless Router allows all users in a local network to be quickly and easily connected to a high speed Internet access even in wireless mode. In order to grant access to several remote users Hamlet Router has a built-in 4 port 10/100 Switch and Access Point IEEE 802.11g at 108Mbps. Hamlet Router has also an ADSL2+ Modem built-in to allow down-streaming at up to 24Mbps with NAT Firewall.

ADSL Compliance

• Compliant with ADSL Standards
  Full-rate ANSI T1.413
  G.dmt (ITU G.992.1)
  G.lite (ITU G.992.2)
• Capable of ADSL2 Standard
  G.dmt.bis (ITU G.992.3)
• Capable of ADSL2+ Standard
  G.dmt.bisplus (ITU G.992.5)

ATM AND PPP Protocols

• RFC 2684 (EoA) (Bridged* and Router)
• RFC1577: IPoA (IP over ATM)
• RFC2364: PPPoA (PPP over ATM)
• RFC2516: PPPoE (PPP over Ethernet)

Management

• Web-based configuration
• Firmware upgradeable
• Save and restore user's settings function
• Password protection for system management
• Reset to default settings function
• Needs third-party software

Hardware And Physical Specification

• WLAN: detachable reverse SMA connector 3dBi antenna
• LINE: ADSL port (RJ11)
• LAN: 4 10/100Mbps auto-negotiation RJ45 ports (Auto MDI/MDI-X)
• Factory default reset button
• Power jack
• LED indicators: Power, System, ADSL, WLAN, LAN (1, 2, 3, 4)
• Dimensions: 186 x 146 x 44 mm

Wireless 802.11g

• Compliant with IEEE 802.11g and 802.11b standards
• 2.4~2.4835 GHz frequency range
• Up to 108Mbps wireless operation rate
• WPA/WPA2, WPA-PSK/WPA2-PSK data security
• TKIP/AES encryption security
• 64/128/152-bit WEP encryption

Firewall and VPN

• Built-in NAT Firewall
• IP address filtering
• MAC address filtering
• Parental control
• VPN pass through

Network Protocols and Features

• Network Address Translation (NAT)
• Static routing and RIP
• Dynamic DNS (Domain Name System)
• DNS relay and IGMP proxy
• Built-in DHCP server
• Virtual Server
• Port Triggering
• DMZ Host

Operating Environment

• Operating temperature: 0 ~ 40 °C
• Storage temperature: -40 ~ 70 °C
• Operating Humidity: 10 ~ 90% non-condensing
• Storage Humidity: 5 ~ 95% non-condensing

Power Requirement

• Input: 12V DC, 1A
• Maximum Power: 10W

Package Content

• ADSL2+ Router
• User's manual
• Resource CD
• Detachable 3dBi Antenna
• RJ11 cable
• Ethernet cable
• Power adapter
