Product description

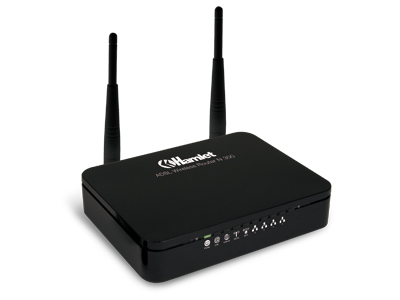

The new Hamlet Wireless ADSL2+ Router 300 is the all-in-one solution for Internet connectivity. The ADSL2+ modem provides you a fast Internet connection up to 24Mbps without tying up your telephone line. The built-in 802.11n 300Mbit Wireless Access Point and the 4-port 10/100 Ethernet Switch allow you to share your Internet connection, files, printers and other resources with all computers of the network.

Features

• IEEE 802.11n draft 2.0 wireless standard compliant
• Backward compatible with IEEE 802.11b/g wireless standards
• Wireless Data Rate up to 300 Mbps
• Frequency range: 2.412 ~ 2.484 GHz
• Antenna configuration: 2T2R (two transmit, two receive)
• Compliant with ADSL/ADSL2/ADSL2+ standards
• Supports PPP over ATM (RFC 2364), PPP over Ethernet (RFC 2516), Bridged IP over ATM (RFC 1483)
• Four 10/100Mbps Fast Switch Ports (Auto-Crossover)
• Provides 64/128-bit WEP Encryption
• WPA and WPA2 Wireless Security
• Supports WPS (Wireless Protected Setup) function
• Wireless ON/OFF and WPS buttons
• Web-based management and firmware upgrade
• IP Packet Filtering, MAC address filtering
• Provides Wireless LAN ACL (Access Control List) filtering
• Supports DHCP, NAT, DMZ, QoS, DDNS
• Universal Plug and Play (UPnP) support
• Status LEDs: Power, ADSL, Internet, WLAN, WPS, LAN1~LAN4
• Dimensions (without antennas): 140 x 107 x 30 mm

Package content

• ADSL2+ Wireless Router
• Power adapter
• Phone cable
• Ethernet cable
• Resource CD
• Quick installation guide
