Product description

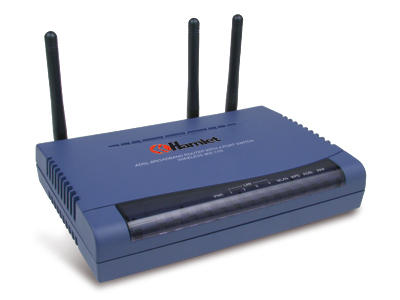

The new Hamlet Wireless N ADSL2+ Router is the all-in-one solution for Internet connectivity. The ADSL2+ Modem function provides you a fast Internet connection up to 24Mbps without tying up your phone line. The built-in Wireless N (draft 802.11n) Access Point and the 4-port 10/100 Ethernet Switch allow you to share your Internet connection, files, printers, and other resources with all computers of the network.

ADSL COMPLIANCE

Compliant with ADSL Standards

• Full-rate ANSI T1.413 Issue 2
• G.dmt (ITU G.992.1)
• G.lite (ITU G.992.2)
• G.hs (ITU G.994.1)

Compliant with ADSL2 Standard

• G.dmt.bis (ITU G.992.3)

Compliant with ADSL2+ Standard

• G.dmt.bisplus (ITU G.992.5)

ATM AND PPP PROTOCOLS

• ATM Adaptation Layer Type 5 (AAL5)
• Multiple Protocol over AAL5 (RFC 2684, formerly RFC 1483)
• Bridged or routed Ethernet encapsulation
• VC and LLC based multiplexing
• PPP over Ethernet (PPPoE)
• PPP over ATM (RFC 2364)
• OAM F4/F5
• ATM QoS: UBR, CBR, VBR-rt, VBR-nrt

WIRELESS 802.11n

• Compliant with IEEE 802.11n draft, 802.11g and 802.11b standards
• 2.4 GHz-2.484 GHz frequency range
• Up to 300Mbps wireless operation rate
• WPS (Wi-Fi Protected Setup) for easy setup
• 64/128 bit WEP encryption
• Wireless Security with WPA-PSK and WPA2-PSK support

FIREWALL AND VPN

• Built-in NAT Firewall
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Packet Filtering
• Anti probe function
• VPN pass through

NETWORK PROTOCOLS AND FEATURES

• NAT, static routing and RIP-1/2
• NAT supports PAT and multimedia app.
• Multi-to-multi NAT
• Transparent Bridging
• Dynamic Domain Name System (DDNS)
• SNTP
• DNS relay

MANAGEMENT

• Web-based configuration
• Firmware upgrades and configuration data upload and download via HTTP/FTP
• Password protection for system management
• SNMP v1/v2 MIB supported
• Support DHCP server/client/relay

HARDWARE AND PHYSICAL SPECIFICATION

• WLAN: 3 of 2dBi fixed antennas
• LINE: ADSL port
• LAN: 4 port 10/100 Mbit auto-crossover (MDI/MDI-X) Switch
• Factory default reset button
• Power jack
• WPS button
• Dimensions: 18 x 12 x 4 cm

OPERATING ENVIRONMENT

• Operating temperature: 0 ~ 40 °C
• Storage temperature: -20 ~ 70 °C
• Humidity: 20 ~ 95% non-condensing

POWER REQUIREMENTS

• Input: 12V DC, 1A
