Product description

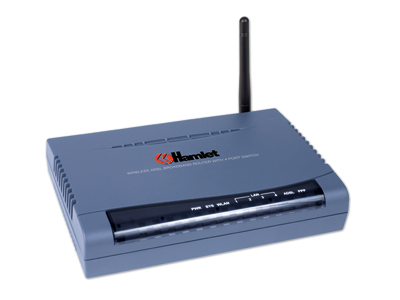

Hamlet 512W Wireless Router allows all users in a local network to be quickly and easily connected to a high speed Internet access even in wireless mode. In order to grant access to several remote users Hamlet Router has a built-in 4 port 10/100 Switch and Access Point IEEE802.11g at 54Mbps. Hamlet Router has also an ADSL2+ Modem built-in to allow down-streaming at up to 24Mbps with NAT Firewall and VPN Function.

Specifications

• High speed Internet ADSL Router
• 4 port 10/100 Fast Ethernet Switch
• Firewall security with DoS prevention and SPI
• Virtual Private Network (VPN)
• 802.11g Wireless AP with WPA support
• Easy to configure with Quick Installation Wizard

ADSL compliance

• Compliant with ADSL Standards
• Full-rate ANSI T1.413 Issue 2
• G.dmt (ITU G.992.1)
• G.lite (ITU G.992.2)
• G.hs (ITU G.994.1)
• Capable of ADSL2 Standard
• G.dmt.bis (ITU G.992.3)
• Capable of ADSL2+ Standard
• G.dmt.bisplus (ITU G.992.5)

ATM and PPP protocols

• ATM Adaptation Layer Type 5 (AAL5)
• Multiple Protocol over AAL5 (RFC 2684,  formerly RFC 1483)
• Bridged or routed Ethernet encapsulation
• VC and LLC based multiplexing
• PPP over Ethernet (PPPoE)
• PPP over ATM (RFC 2364)
• OAM F4/F5

Management

• Web-based configuration
• Firmware upgraded and configuration data upload and download via TFTP/FTP
• Firmware upgradeable to ADSL2/ADSL2+ standards
• Embedded Telnet server for remote and local management
• SNMP v2 MIB supported
• Support DHCP server/client/relay

Hardware and Physical specification

• WLAN: fixed antenna
• LINE: ADSL port
• LAN : 4 port 10/100M auto-crossover (MDI/MDI-X) switch
• Factory default reset button
• Power jack
• Power Switch
• Dimensions: 18 x 12 x 4cm
• Power Requirement Input: 12V DC, 1A

WIRELESS 802.11g

• Compliant with IEEE 802.11g and  802.11b standards
• 2.4 GHz-2.484G Hz frequency range
• Up to 54 Mbps wireless operation rate
• 64/128 bits WEP supported for encryption

FIREWALL and VPN

• Built-in NAT Firewall
• Packet Filtering
• Password protection for system management
• VPN pass through

Operating Environment

• Operating temperature: 0 ~ 40 C
• Storage temperature: -20 ~ 70 C
• Humidity: 20 ~ 95% non-condensing

Network protocols and features

• NAT, static routing and RIP-1/2
• NAT supports PAT and multimedia app.
• IP Alias
• IP Policy Routing
• Multi-to-multi NAT
• Transparent Bridging
• Dynamic Domain Name System (DDNS)
• SNTP
• DNS relay and IGMP proxy

Package contents

• Router
• Quick Start Guide (English and Italian)
• Cd-rom with manual (English and Italian)
• Cat 5 lan cable
• RJ11 ADSL/telephone cable
• AC-DC power adapter ( 12V- 1A)
