Product description

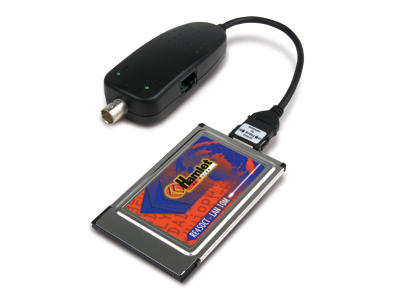

The perfect solution for your notebook to connect to LAN application through PCMCIA slot. The PCMCIA Ethernet LAN PC Card consists of one base unit and one media coupler. The base unit contains the Ethernet controller, interface to the notebook computer PCMCIA slot, flash memory for configuration storage and RAM data buffer. The media coupler has a 15-pin PCMCIA standard connector and two LED indicators for LINK and ACT indication. It also provides RJ-45 UTP (10BaseT) and BNC (10Base2) COMBO connector option.
Key Features
- PCMCIA Type II compliant
- NE2000 compatible
- Comply with IEEE 802.3 10Base2, 10BaseT Ethernet standard
- Built-in 16KB RAM data buffer
- Both thin coaxial BNC (10Base2) and RJ-45 UTP (10BaseT) media coupler support
- Auto-detection of connected network media
- Diagnostics LED indicators for LINK and ACT
- FCC Class B and CE mark certified
- Support all major Network Operating Systems (NOS)
- Menu-driven installation utility and LAN diagnostics program included
- Support of PC Card hot swap and insertion
- Compatible with extensive notebook models.
Specifications
- Ethernet LAN Standard Compliant IEEE 802.3
- Media Coupler Support UTP, or UTP & BNC COMBO
Interrupt Support
- 3, 4, 5, 7, 9, 10, 11, 12, 15
- I/O Address Support
- Any 32 continuous I/O space
Card and Socket Service Support
- PC Card standard Card Service
- Specification 2.0 and newer
Network Operating System & Software Support
Windows NT 3.5x & 4.0, Windows 95 & OSR2, Windows 2000, Windows for Workgroups 3.11 (WFW 3.11), Windows 3.1 (DOS), Novell Netware 3.x & 4.x Client, Personal Netware, Netware IPX/SPX, Microsoft LAN Manager, Artisoft LANtastic, IBM LAN Support, DEC Pathworks, Wollongong Pathway Access, Sun Microsystems PC-NFS, Banyan VINES, FTP PC/TCP, TCP/IP Packet Driver.
Package contents
- PCMCIA lan
- Quick Start Guide (English, Italian, German, French, Spanish, Swedish and Dutch)
- Floppy Drive with drivers
- Coupler Media with BNC and UTP connections
- BNC connector
- Coupler 8pin F/F
- Pcmcia case
