Product description

Extend your capabilities 3 ports in the front, 2 ports at the back!!

Features

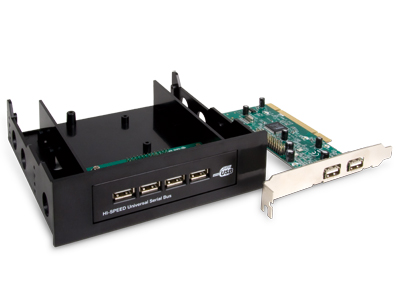

• Attaching the 5.25" front bay easily enables 3 additional USB 2.0 ports to the front panel
• Adds 2 USB 2.0 ports at the back of your computer
• Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
• Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
• Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
• PCI multi-function device consists of two OHCI Host Controller cores for full/low-speed signaling and one EHCI Host Controller cores for high-speed signaling
• 32-bit 33 MHz host interface compliant to PCI Specification release 2.2
• Supports PCI-Bus Power Management Interface Specification release 1.1
• All downstream ports are capable to handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) transaction
• Plug & Play and Hot Swapping functions

System Requirements

• Windows 98/98SE/2000/ME/XP
• Mac OS X 10.1

Package contents

• HUSB2FR514
• Italian Quick Start Guide
• Cd-rom with drivers and manual
• 8 screw
