Product details

product data sheet
XPW220U
Discontinued Product
CODE: XPW220U
EAN: 
supports

Product menu

Product description

Discontinued product

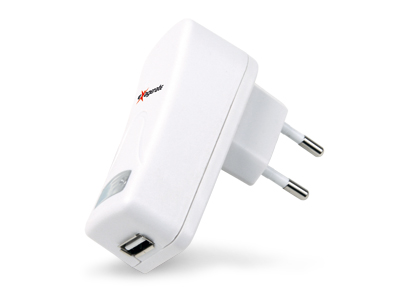

USB travel charger compatible with any USB portable device. It allows to recharge batteries of mobile phones, MP3 players and other USB recharghable devices. It connects with your 220V socket supplying continuous electrical current compatible with USB peripherals voltage.

Features

  • Standard USB interface
  • MP3 player compatible
  • PDA compatible
  • Mobile phone compatible
  • iPod compatible

Specifications

Input

  • Input range: 100-240VAC(Full Range), 50-60Hz
  • Input current (rms): 0.2A, 90VAC; 0.4A, 90VAC MAX
  • Efficiency >75%@full load, 115VAC(DC Conversion)
  • EMI: FCC Class B, CISRP22 Class B, EN 55022 Class B

Output

  • Voltage (Vo): 5V
  • Voltage regulation: 5% constant voltage mode
  • Current limit: 5% constant current mode
  • Maximum power (Po) 5W
  • Hold-up time: 10ms typical at full load @ 115VAC
  • Protection: Over voltage protection (OVP), AC recycle
    Short circuit protection ; Output short circuit protection
    (<0.03 ohm) Auto recovery
  • Cable: USB female socket
  • Led: With red LED for power indication
  • Safety: UL 1950,CSA 22-2-2,TUV En60950,IEC 950,BSMI,PSE,EK-mark,CE EMC&LVD

Environmental

  • Operating temperature 0 C to + 40 C ambient
  • Storage temperature -10 C to + 70 C
  • MTBF:>1,000 hours at full load and 25 C ambient Temperature
  • Weight 60g
Specifications and appearance are subject to change without prior notice.
