Product description

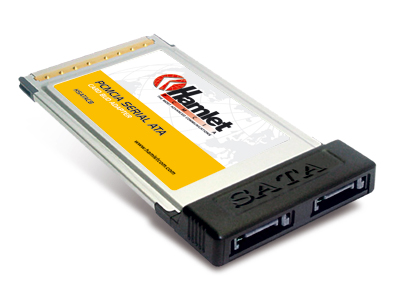

This SATA Card bus is compliant with Serial-ATA 1.0 specifications, can upgrade your computer to have dual Serial ATA RAID Channels. Supports High Speed Transfer Rate 1,500Mbps, Compare with 480Mbps of USB2.0 and 400Mbps of 1394a, fully compliant Serial ATA ports on the device side to access Serial ATA Hard Disk Drive. Special enhanced SATA shell connectors for Mobile HDD, Mobile CD-ROM, Mobile DVD, Mobile CD-RW. Striping (RAID 0) and Mirroring (RAID 1) improve the data performance and provide the data redundancy.

Specification

• Data transfer between notebook and Serial ATA devices
• Compliant with Serial ATA 1.0 specifications

Features

• Supports SATA 1.0 (High Speed Serialized AT Attachment, Revision 1.0
• 1.5 Gb/s data rate 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
• Dual high speed Serial ATA interface ports, each supporting 1st generation Serial ATA data rates 1.5Gb
• Supports two independent Serial ATA channels
• Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes
• Supports Plug and Play
• PC Card 32 bit Card Bus fully compliant

System Requirement

• Pentium-class portable computer with one available CardBus Type II slot
• Windows 98, Windows Millennium,Windows NT 4.0, Windows 2000 and XP
